Class 4: Expression Placeholders & Props

  • Review: Last Class
  • Static Resources & URIs
  • JSX Expression Placeholders
  • Props
  • Styling Components as Objects

Review: JSX ⭢ JavaScript

export default function ComponentName() {
  return <div>Hello</div>
}

In JSX, the HTML-like elements are transpiled into JavaScript function calls to React.createElement:

export default function ComponentName() {
  return React.createElement('div', null, 'Hello')
}

Review: Components are Objects

export default function ComponentName() {
  return <div>Hello</div>
}

Calling ComponentName() returns a JavaScript object:

{
  type: 'div',
  props: { children: 'Hello' },
  // ...
}

Review: JSX Component Invocation

<ComponentName />

<ComponentName /> is transpiled into a JS function call:

ComponentName()

When your SPA is rendering <ComponentName />, it calls the function ComponentName() to get the object that describes what to render.

Review: JavaScript Modules

A JavaScript module is a file that contains JavaScript code.

Importing a Module​

src/App.jsx

import ComponentName from "./ComponentName";

Omit the file extension when importing modules (.js/.jsx).

Exporting a Module​

src/components/ComponentName.jsx

export default function ComponentName() {
  return (
    <div>Hello</div>
  )
}

Static Resources & URIs

Static Resources

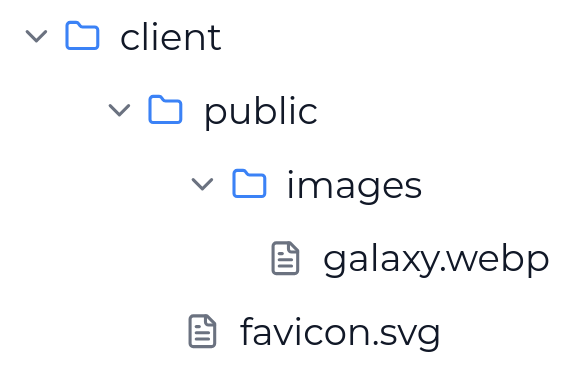

Store all static resources (i.e. images, fonts, and other files that are not code) in the public directory.

center height:300px

These files are served as static files by the web server.

Think: INFO 1300

Static Resource URIs

Reference static resources from the public directory using a Uniform Resource Identifier (URI) that begins with: /

<img src="/images/galaxy.webp" />

center height:300px

Gotcha: Paths vs. URIs

Paths​

Used in code to locate files on the file system.

import ComponentName
  from "./components/ComponentName"

./components/ComponentName is the file path on the developer's computer.

URIs​

Used in HTML to locate static resources served by the web server.

<img src="/images/galaxy.webp" />

/images/galaxy.webp is the URI served by the web server to the user's browser.

Activity: Static Resources & URIs

Working with your peers (2-4), complete the following tasks:

  1. Move all images from the root of the activity repository to the public/images directory.

  2. Test that you can access the images in your browser using the URL: http://CODESPACE_NAME-5173.app.github.dev/images/pulsar.webp

    Example: https://zanny-umbrella-5173.app.github.dev/images/pulsar.webp

Expression Placeholders

JSX Expression Placeholders

Use curly braces {} to embed JavaScript expressions inside the HTML-like syntax of JSX.

export default function ComponentName() {
  const name = "Prof. Harms"

  return <div>Hello, {name}!</div>
}

Gotcha: Expression placeholders only exists inside the HTML-like portions of a JSX file.

JavaScript Variable Declaration

Declaring a constant variable in JavaScript:

const name = "Prof. Harms"

Declaring a mutable variable in JavaScript:

let count = 0

Demo: JSX Expression Placeholders

export default function Citation() {
  const citation = "Microsoft Copilot"

  return (
    <p className="citation">
      Source: <cite>{citation}</cite>
    </p>
  )
}

Activity: JSX Expression Placeholders

The Card component's image is hard-coded to /images/galaxy.webp.

  1. Create a constant named imgUri that stores the URI for the static image resource in Card.
  2. Modify the Card component to render the image using an expression placeholder and imgUri.
  3. Create another constant for the alt text.
export default function ComponentName() {
  const name = "Prof. Harms"

  return <div>Hello, {name}!</div>
}

Props

Props

Props (short for properties) are a way to pass data into a React component.

<ComponentName propName={propValue} />

Think: HTML attributes, but for JSX components

Example:

<Citation source="Microsoft Copilot" />

Defining Props

Defined as parameters to the component function using camelCase.

export default function ComponentName({propName1, propName2, propName3}) {
  // ...
}

Use the prop names to access the prop values inside the component.

export default function ComponentName({propName}) {
  return <div>{propName}</div>
}

Demo: Defining & Using Props

export default function Citation({source}) {
  return (
    <p className="citation">
      Source: <cite>{source}</cite>
    </p>
  )
}

Activity: Defining & Using Props

  1. Add a prop for the image URI to the Card component.
  2. Modify the Card component to use the image URI prop.
  3. Update the App component to pass the image URI prop.
  4. Add a prop for the alt text to the Card component.
  5. Render 3 cards with different images and alt text.
export default function
  ComponentName({propName}) {

  return <div>{propName}</div>
}

Gotcha: Props are Read-Only

Props are read-only inside a component. You cannot modify prop values.

Gotcha: JSX Provides Some Props

For HTML elements, JSX provides some props by default, like className, style, and id.

<div className="warning">Warning!</div>

Why not class? Because props must be valid JavaScript identifiers, and class is a reserve word!

Style Object

Review: Style Object

<div style="color: red; font-size: 20px; font-weight: bold;">Hello</div>

font-size and font-weight are not valid JS identifiers (they contain hyphens). Use camelCase instead:

{
  color: 'red',
  fontSize: '20px',
  fontWeight: 'bold',
}

Activity: Style Practice

Working with your peers (2-4), complete Part I of the handout.

Example:

{
  color: 'red',
  fontSize: '20px',
  fontWeight: 'bold',
}

Gotcha: Expression Placeholders & Object Literals

When using an object literal inside a JSX expression placeholder, you need to use double curly braces {{ ... }}.

<div className="warning" style={{ color: 'red', fontSize: '20px' }}>
  Hello
</div>

The outside pair of curly braces is for the JSX expression placeholder. The inside pair of curly braces is for the JavaScript object literal.

Demo: Style Object as Prop

export default function Citation({ citation }) {
  return (
    <p className="citation" style={{ textAlign: 'center' }}>
      Source: <cite>{citation}</cite>
    </p>
  )
}

Activity: Style Object as Prop

Set the background color of the <div> in Card to white.

Citation.jsx:

export default function Citation({ citation }) {
  return (
    <p className="citation" style={{ textAlign: 'center' }}>
      Source: <cite>{citation}</cite>
    </p>
  )
}

Summary

  • Static resources go in the public directory and are referenced using URIs that start with /.
  • Expression placeholders {} allow embedding JavaScript expressions inside JSX.
  • Props are a way to pass data into components as function parameters.
  • Style objects are JavaScript objects that define CSS styles using camelCase property names.
  • When using object literals in JSX expression placeholders, use double curly braces {{ ... }}.

What's Next

Due Today: Project 1, Milestone 1

Due Tuesday: Class 5 Preparation
