INFO 4340/5440: Installable Prototype App

Class 9: Installable Prototype App​


  1. Review: Last Class
  2. Installable Prototype App
  3. Studio - Homework 3, Sprint 2

Copyright 2026, Kyle J. Harms

Review: Slots​

Slots are a way to pass content from a parent component to a child component. They allow you to create more flexible and reusable components.

App.vue

<script setup>
import Card from 'Card.vue'
</script>
<template>
  <Card>
    <template #header>
      <h2>Card Header</h2>
    </template>
    <template #body>
      <p>Card Body</p>
    </template>
  </Card>
</template>

Card.vue

<script setup>
</script>

<template>
  <div class="border border-gray-300 rounded-lg">
    <header class="bg-gray-100 p-4">
      <slot name="header"></slot>
    </header>
    <main class="p-4">
      <slot name="body"></slot>
    </main>
  </div>
</template>

Review: GitHub Issues​

  1. Create a button component in your Homework 3 repository.

  2. Commit your changes using a commit message that references the issue number (e.g. #1).

  3. When you are finished with your changes, close the issue.

    If you want to close the issue automatically when you push your changes, use the following commit message:

    implement button component (closes #1)

Installable Prototype App​

Progressive Web App​

A Progressive Web App (PWA) is a type of web application that is installable on a user's device and can work offline or with a poor network connection.

PWA requirements:

  • A manifest (provides metadata about the app)
  • A service worker (enables offline functionality)
  • HTTPS (for security)

Homework 3: Sprint 2​

Goal: Create an installable prototype app that documents the functionality of your UI component library.

Activity: Installable Prototype App​

Together, let's create a PWA from your Homework 3, sprint 2.

Tips: Unable to Install PWA​

First try: Hard refresh in your browser

Codespace:

  • Stop your dev server
  • npm install again

GitHub Pages:

  • npm run build and npm run publish-pwa (Ctrl + Shift + R on Windows, Cmd + Shift + R on Mac)
  • In github.com Pages setting for repo, set Branch to none. Save. Then set to gh-pages. Save.

Homework 3: Sprint 2​

Goal: Create an installable prototype app that documents the functionality of your UI component library.

Sub-Goals: Implement progressive web app (PWA) functionality in your Homework 3 prototype app. Sub-Goals: Implement additional components that are necessary to implement an "image conversion" app.

Note: You are not implementing an image conversion prototype.

Activity: Component API Design​

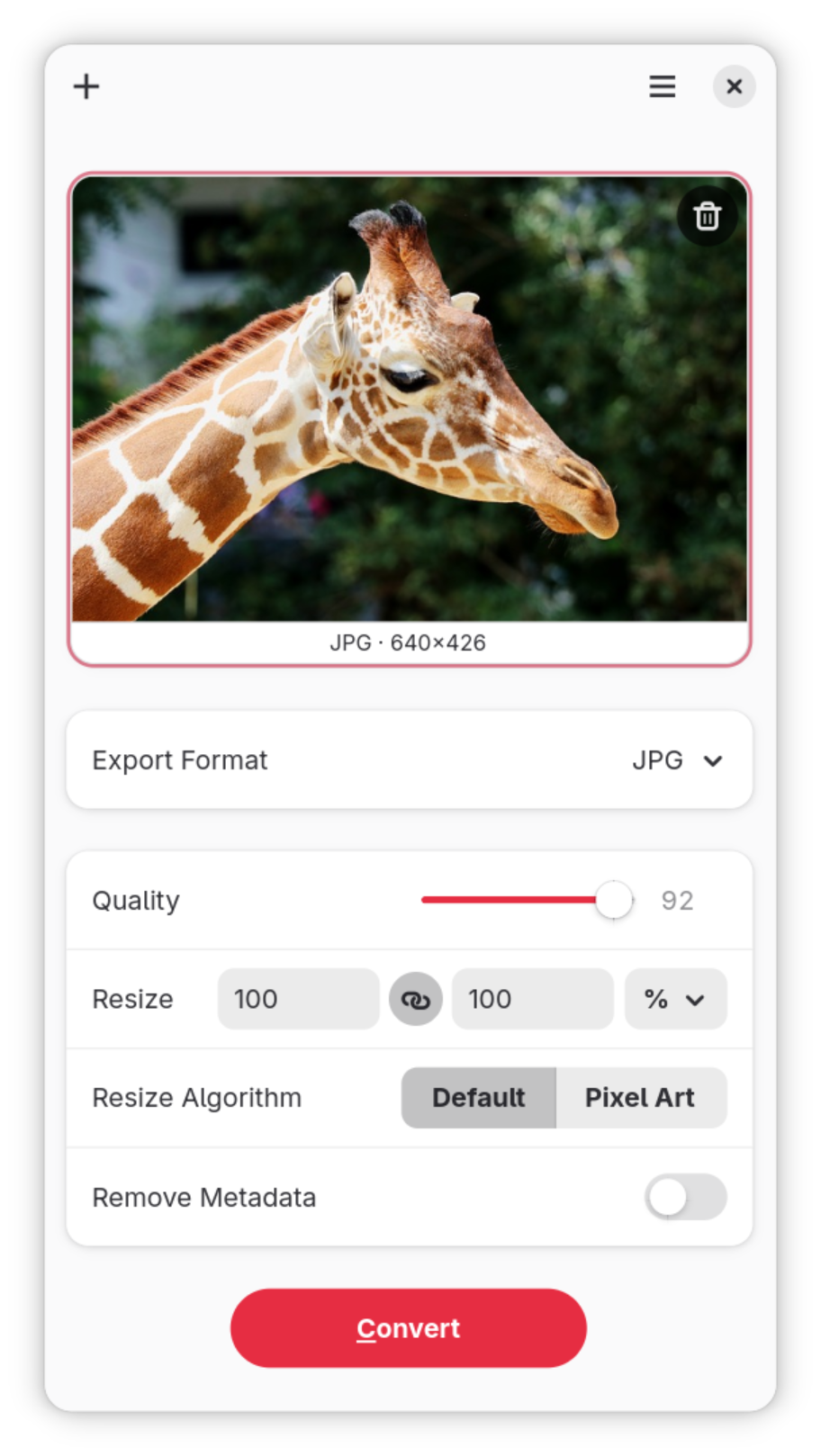

Working with a peer, identify the components that are necessary to implement an "image conversion" app. Design the API for these components.

Studio: Homework 3, Sprint 2​

  1. Create an issue for each task in your Homework 3 repository.
  2. Implement the PWA functionality.
  3. Plan and implement the additional components that are necessary to implement an "image conversion" app.

What's Next​


Thursday's Class: Oral Exam I Primer + Practice

Next Week: Oral Exam I
